Modern Prefabricated Steel Frame Building For Industrial Warehouse Use

Name: Modern Prefabricated Steel Frame Building For Industrial Warehouse Use
Brand: TSIN
Price: 40 USD

Buy cheap Modern Prefabricated Steel Frame Building For Industrial Warehouse Use product

Brand Name : TSIN

Model Number : TSIN

Certification : ISO, CE, SGS

Place of Origin : Shandong, China

Place Of Origin : Qingdao, Shandong, China

MOQ : 1000 sqm

Price : USD 40-60 / sqm

Payment Terms : T/T,L/C

Supply Ability : 100,000 sqm / month

Delivery Time : 6 weeks after shop drawing get approval

Packaging Details : Packed on steel pallet with fixture and loaded into 40'HQ/OT

Warranty : 5 Years

Maintenance Costs : Reduced

Labor Costs : Lower

Connection : Bolts

Insulation : EPS, Glasswool, Rockwool, PU On Option

Thickness Of Panel : 50mm, 75mm, 100mm, 150mm, 200mm, 250mm

Using Life : 50 Years

Product : Steel Structure

Material Grade : Q355B, Q235B

Structure type : Portal frame

Design Load : Wind, Snow, Seismic

Design software : PKPM, Tekla structures, CAD

Sand blasting : Sa 2.5

Surface treatment : Anti-corrosive paint or hot dipped galvanized

Contact Now

Modern Prefabricated Steel Frame Building for Industrial Warehouse Use

Attribute	Value
Warranty	5 Years
Maintenance Costs	Reduced
Labor Costs	Lower
Connection	Bolts
Insulation	EPS, Glasswool, Rockwool, PU On Option
Thickness Of Panel	50mm, 75mm, 100mm, 150mm, 200mm, 250mm
Using Life	50 Years
Product	Steel Structure
Material Grade	Q355B, Q235B
Structure type	Portal frame
Design Load	Wind, Snow, Seismic
Design software	PKPM, Tekla structures, CAD
Sand blasting	Sa 2.5
Surface treatment	Anti-corrosive paint or hot dipped galvanized

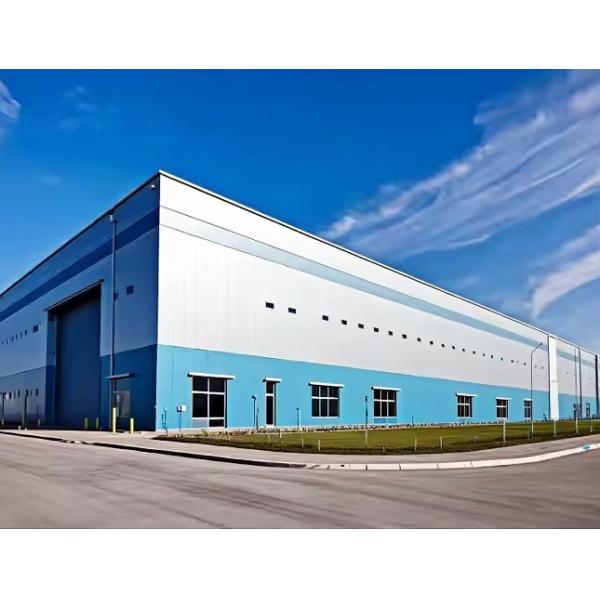

Modern Prefabricated Steel Frame Building

Modern Prefabricated Steel Building

The Modern Prefabricated Steel Building is designed for easy assembly and recyclability, making it suitable for industrial warehouses, office spaces, and residential use. This building utilizes steel to create a load-bearing structure known as the main frame, which consists of beams and columns.

The bracing system includes:

Tie bars
Knee bracing
Stay bars
Column bracing
Horizontal bracing

Together with the roof system, wall system, and floor system, these components form a complete metal structure that ensures stability and durability.

Advantages of Metal Workshop Buildings

Compared to traditional concrete buildings, metal workshop structures offer several key advantages:

Superior Strength and Seismic Resistance: Metal workshops utilize steel plates or sectional steel, providing much higher strength and improved seismic resistance.
Reduced Construction Time: With components prefabricated in factories, on-site assembly is quick, significantly shortening the construction period.
Environmental Benefits: Steel is reusable and recyclable, which reduces construction waste and minimizes environmental impact.
Cost Efficiency: Lower material costs and reduced labor time lead to overall cost savings for projects.

In summary, metal workshop buildings provide a strong, efficient, and environmentally friendly solution for industrial needs.

Product Specifications

Products	Steel Structure Warehouse
Frame type	Portal frame, multi-story frame
Main frame	Hot-rolled or Welded H beam and column, Q355B steel
Bracing components	Tie bar, staying bar, Horizontal bracing, Column bracing
Cladding system	Sandwich panel with glass wool, rock wool, PU insulation, Corrugated color steel sheet
Accessory	Ridge tile, trim, Gutter, Down pipe, skylight, clerestory
Door	Roll up door, industrial section door, swing door, Sliding door
Window	PVC window, aluminum window, metal louver

Our Advantages

Advantages of Steel Structure Building:

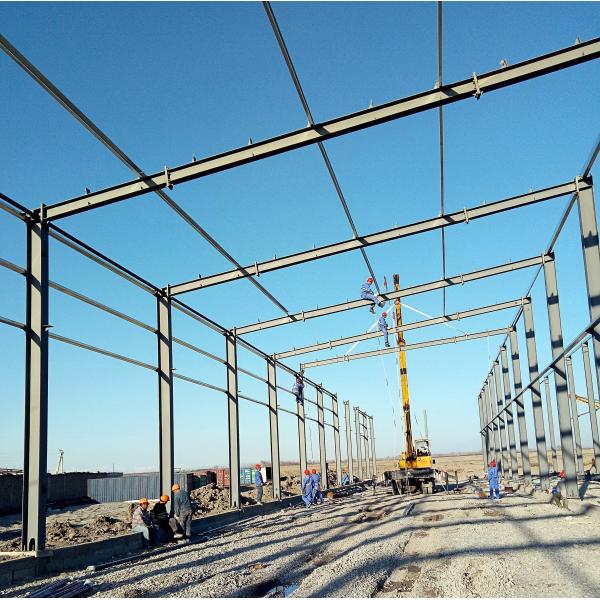

Easy to assemble: Prefabricated steel components are installed on-site as per drawings: first steel columns with cross-bracing, followed by roof beams and horizontal bracing, and finally purlins and enclosures.
Cost-effectiveness: Its lightweight nature reduces foundation expenses, while rapid construction allows for earlier operation. Overall economic benefits surpass those of traditional concrete buildings.
Simplified construction with short timelines: Factory-manufactured components are assembled on-site, drastically shortening build time. A 4,000㎡ steel structure building can be installed in approximately 40 days.
Energy-efficient & eco-friendly: Corrugated color steel sheets and sandwich panels boast energy-saving properties. Dry construction avoids dust and pollution from concrete work, and steel's recyclability further reduces environmental impact.
Design Key Factors
- Optimal Column Spacing:
  Using H-section steel columns and beams, column spacing directly affects steel usage and costs. Typically set between 6.8 to 9 meters for economic efficiency, this can be adjusted based on specific needs. Additionally, building height should align with functional requirements, such as equipment space, human activity, and maintenance access.
- Proper Lighting & Ventilation:
  Large-span, open interiors require human-centric, energy-efficient designs. For taller buildings, operable windows on the ground floor serve as primary air inlets, complemented by roof ventilators to effectively address lighting and ventilation needs.
Differences Compared to Concrete Buildings
- Shorter Construction Period:
  Prefabricated components require minimal on-site welding, allowing for significantly faster construction compared to traditional concrete builds.
- More Eco-Friendly:
  Steel components are hoisted and joined without the use of water, reducing dust and pollution in the surrounding environment.
- Better Cost Performance:
  The speed of construction reduces labor costs, with total expenses typically 20-30% lower than those of traditional concrete buildings. Additionally, steel offers enhanced durability.
- Lighter Structure:
  Lightweight metal walls and roofs are considerably lighter than brick or concrete alternatives, reducing overall structural weight and easing foundation loads.

Frequently Asked Questions

1. What materials are used in your steel structure buildings?

Our steel structure buildings mainly use high-quality H-section steel, I-section steel, color steel plates and sandwich panels with reliable performance and durability.

2. What certifications do your steel structure buildings have?

Our products have passed ISO 9001 quality management system certification and CE certification to meet international standards and can be customized according to different market requirements.

3. How long is the construction period of a steel structure building?

The construction period depends on the size and complexity. Generally, a 4,000 square meter building can be completed in about 40 days due to prefabricated components.

4. Can steel structure buildings be customized according to needs?

Yes, we can customize the design, size, and configuration of steel structure buildings according to customers' specific usage scenarios and functional requirements.

5. Do you provide installation guidance for steel structure buildings?

We provide detailed installation drawings and instructions. For large projects, we can also send professional engineers to the site for guidance to ensure smooth installation.
